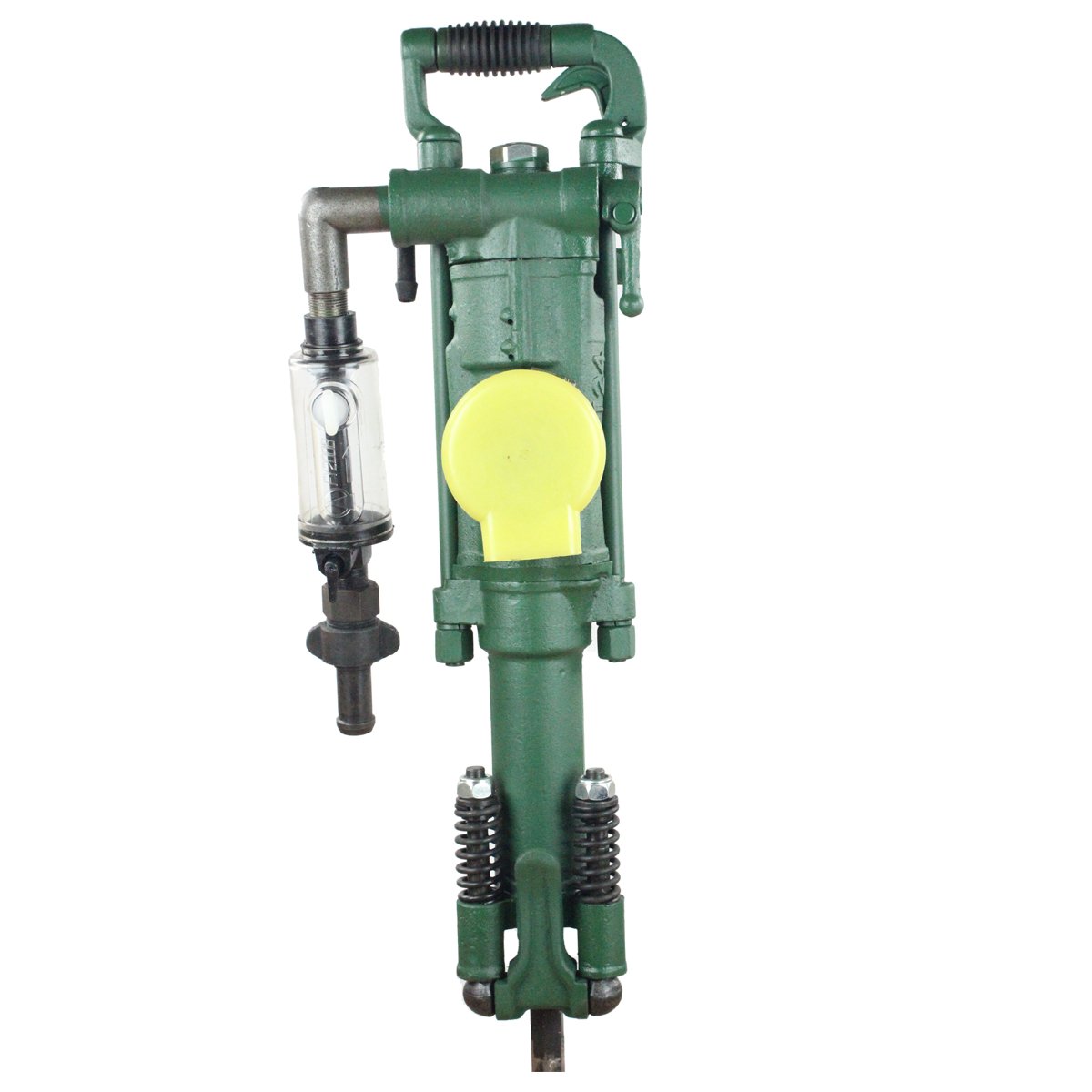

YT24


Short Description:

YT24 type pneumatic rock drill is widely used in mine roadway drivage of drill hole, and a variety of engineering work is metallurgy, coal, railway, traffic, water conservancy and national defense project of regarding the indispensable important tool, this machine is suitable for medium hard rock wet drilling horizontal and inclined hole, effective economic drilling depth of up to 5 m, according to the roadway cross-section size and FT140B gas leg, can also be installed in the car or the rack.

Specification

ModelYT24C
Weight24kgs
Length628mm
Air pressure0.4-0.63Mpa
Impact frequency237HZ
Air consumptions80L/s
Impact energy265J
Cylinder*stroke76mm*60mm
Air pipe diameter25mm
Shank dimension22*108mm
Drilling depth5m
Bit diameter34-42mm
