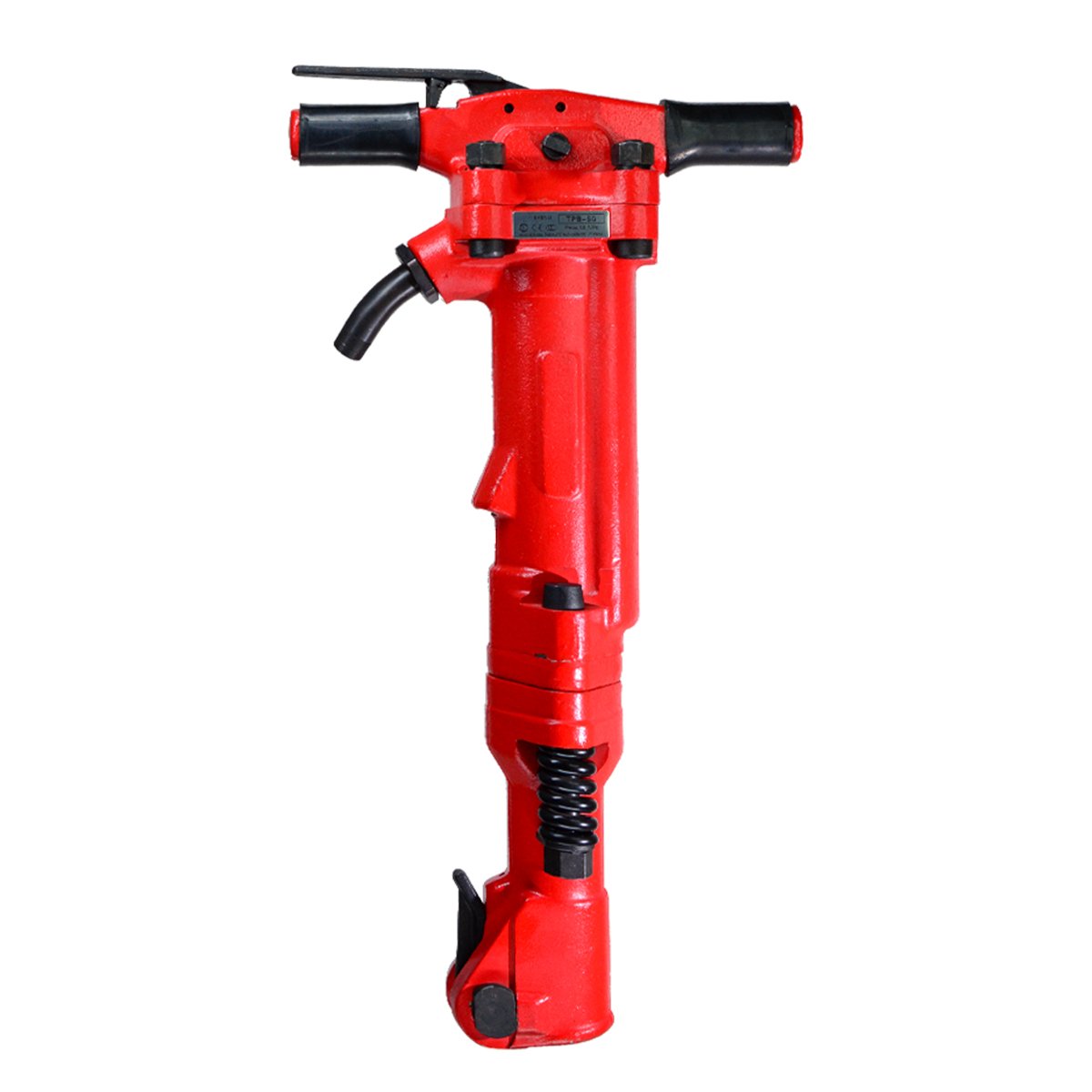

TPB-90 crusher adopts the mature technology . It is a crushing tool powered by compressed air, which can efficiently complete the crushing work of reinforced concrete, rock, asphalt, etc. It has the characteristics of greater horsepower, higher efficiency, and longer life, which is especially suitable for crushing operations of extra-large, extra-thick, and extra-hard objects. It is an ideal tool for basic engineering construction such as mines, bridges, roads, and municipal construction.
| Model | tpb-90 |
| Piston diameter | 66.67mm |
| Piston stroke | 152mm |
| Percussive frequency | 1400 B.P.M |
| N.W | 42kg |
| Length | 723MM |
| Air consumption | 2.2 m3/min |
| Tracheal diameter | 19 |
| bit head size | R32*152 |
