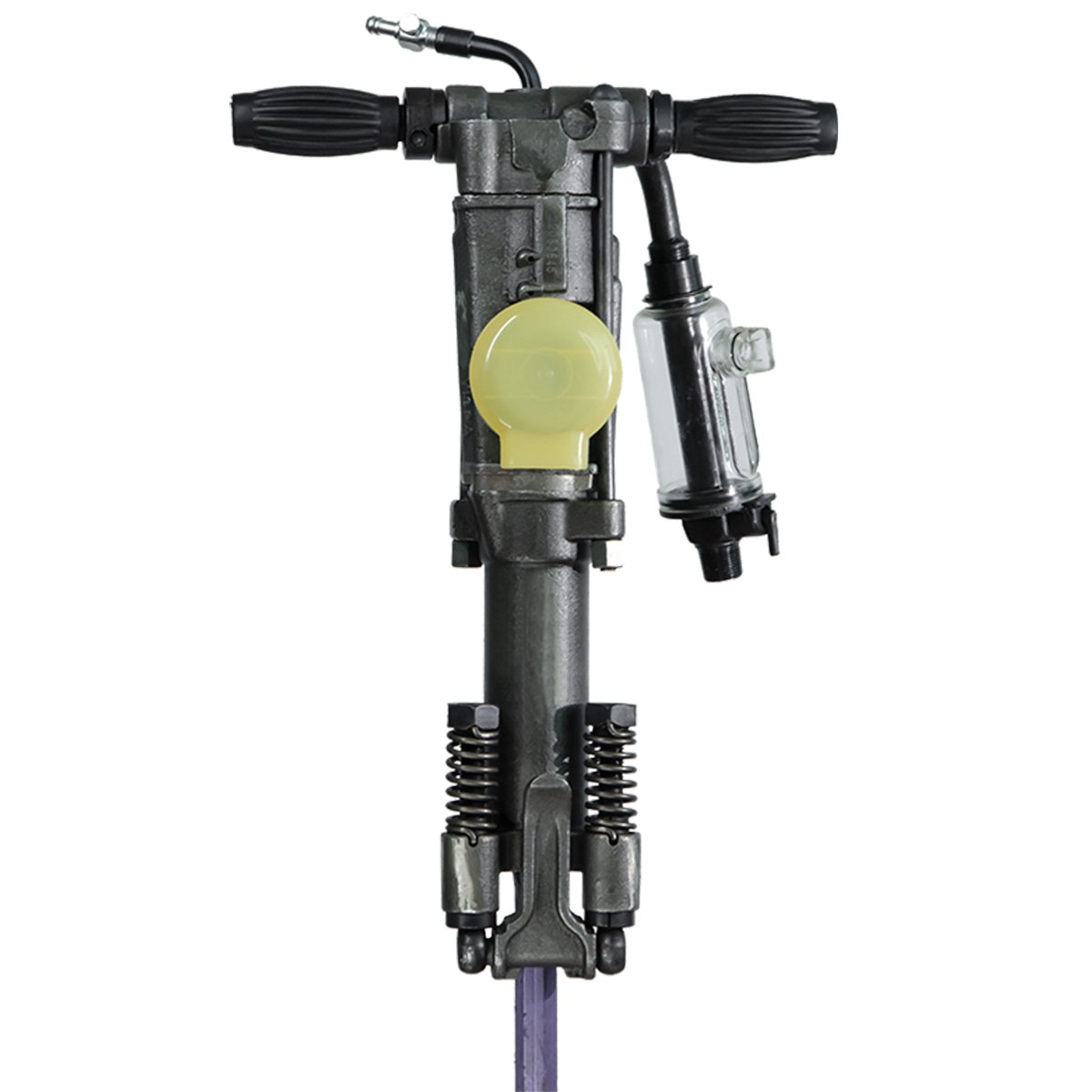

Y018
Short Description:
Y018 hand-held, air-leg dual-purpose rock drill is suitable for drilling blast holes on soft, medium and hard rocks, and can be used with air compressors such as W-1.5/4, W-1.8/5, W-2/5. They are widely used in mines, hydraulics, prospecting, quarrying, highways, transportation and national defense projects. The hand-held rock drill can perform all-round rock drilling. The air leg rock drill can be matched with FT100 air leg to drill horizontal and inclined blast holes.
Specification
| Model: | Y018 |
| Machine weight: | 18mm |
| Length: | 550mm |
| Cylinder Diameter. | 58mm |
| Piston Stroke: | 45mm |
| Tracheal Diameter. | 19mm |
| Inner Diameter Of Water Pipe: | 8mm |
| Use Air Pressure: | 0.35-0.5 Mpa |
| Using Water Pressure: | ≤0.35-0.5 Mpa |
| 0.4 Mpa Working Pressure Impact Frequency: | 1900 times/min |
| Air Consumption: | 1.3 m3/min |
