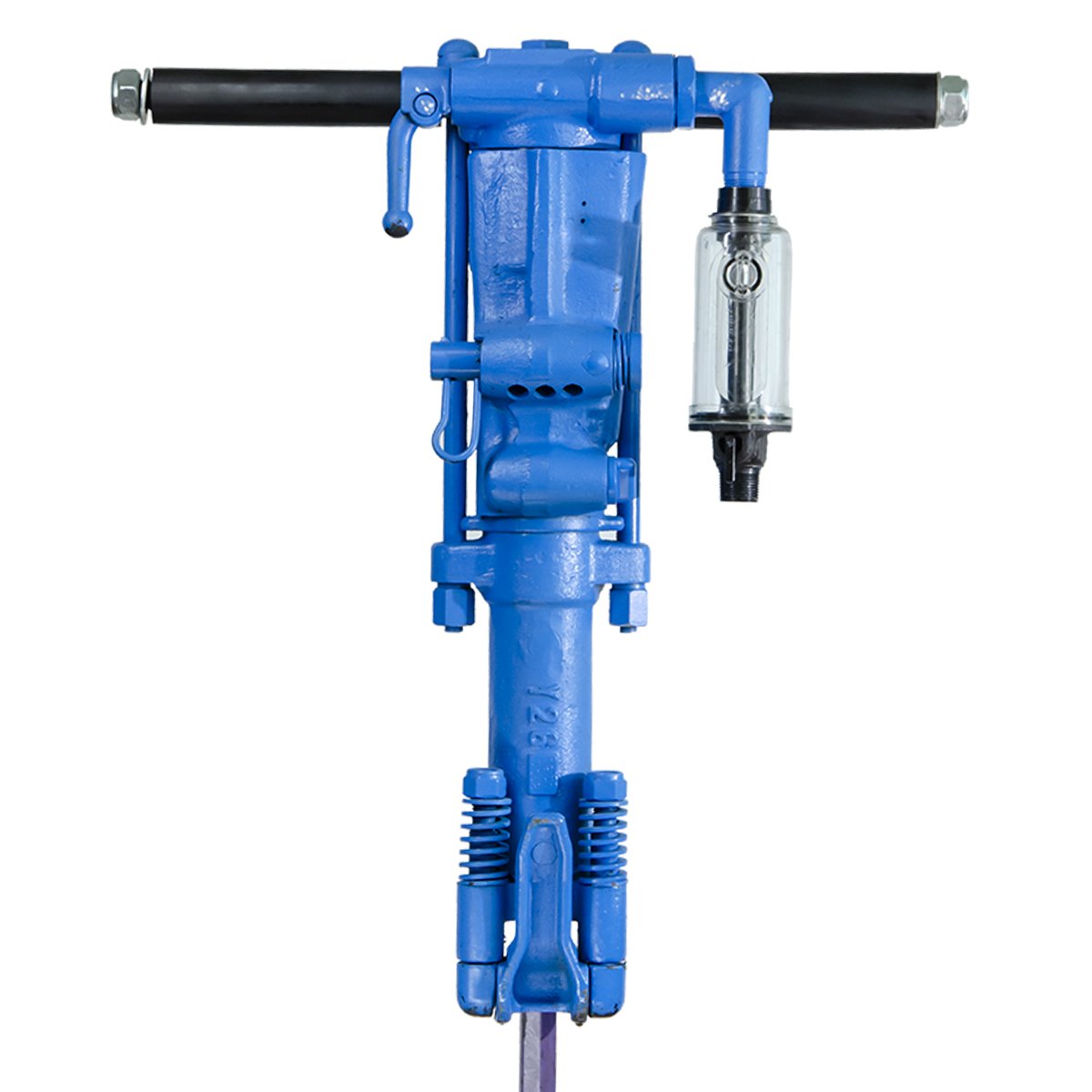

Y26 hand-held rock drill has the advantages of small size, light weight, low gas consumption and so on dry rock drilling, suitable for small mines, quarries, mountain roads, water conservancy construction and other projects a vertical downward or sloping blasting hole or secondary blasting hole is drilled in the surface layer. Y26 rock drill with independent strong air blowing system is suitable for drilling vertical downward blasting holes.
| Model | Y26 |
| WEIGHT(KG) | 26 |
| SHANK SIZE(MM) | 22*108 |
| CYLINDER DIA(MM) | 75 |
| PISTON STROKE(MM) | 70 |
| WORKING PRESSURE(MPA) | 0.4-0.63 |
| IMPACT FREQUENCY(HZ) | 28 |
| AIR CONSUMPTION | 47 |
| AIR PIPE INNER DIA(MM) | 19 |
| ROCK DRILL HOLE DIA(MM) | 30-45 |
| ROCK DRILL HOLE DEPTH(M) | 5 |
