Y24


Short Description:

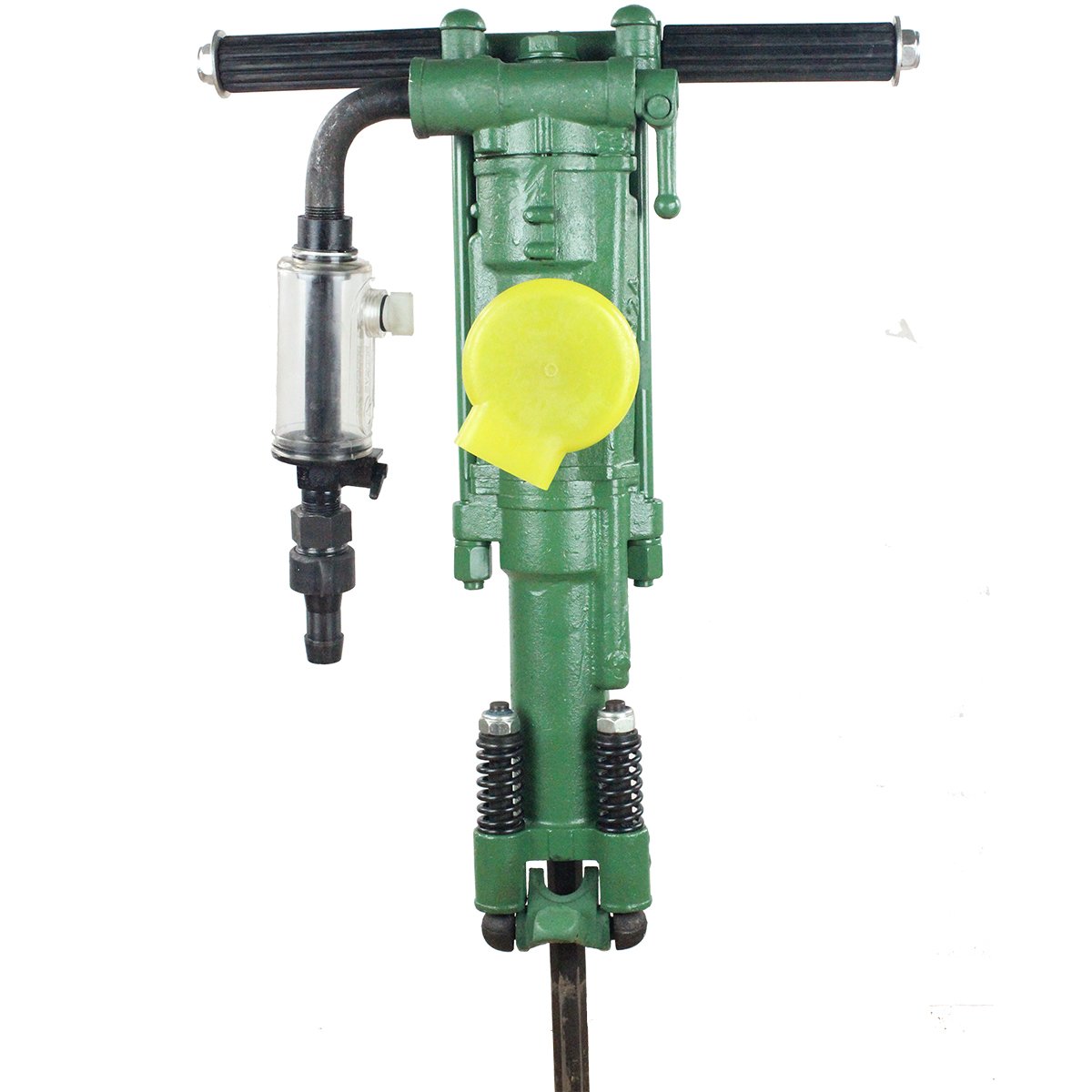

Y24 hand-held rock drill is a variant of YT24 air-leg rock drill in our factory. It has the advanced level in China and was rated as the high quality product in 1987. It is suitable for second blasting and downward drilling in foreign quarries. It not only maintains the excellent performance of YT24 rock drill, but also enhances the ability of blowing and cleaning the hole. Therefore, it is more suitable for drilling downward gun holes.

Specification

ModelY24
WEIGHT(KG)23
SHANK SIZE(MM)22*108
CYLINDER DIA(MM)70
PISTON STROKE(MM)70
WORKING PRESSURE(MPA)0.4-0.63
IMPACT FREQUENCY(HZ)28
AIR CONSUMPTION55
AIR PIPE INNER DIA(MM)19
ROCK DRILL HOLE DIA(MM)30-45
ROCK DRILL HOLE DEPTH(M)6
